Flip layers

Layers can be moved within the Layer Stack. This allows you to rearrange their order and choose which ones will be dedicated to background or foreground elements.

To move a layer: left click and hold on a layer (click on an area without any buttons) then move your cursor right under or above another layer on the Layer Stack:

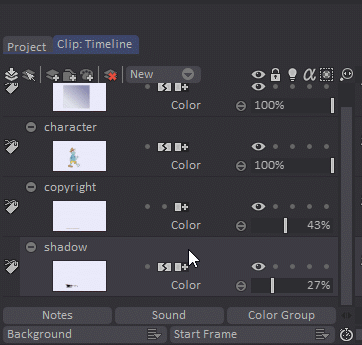

Flip layers GIF

The Undo option in the Main Menu can be used to undo modifications of the Layer Stack.

warning

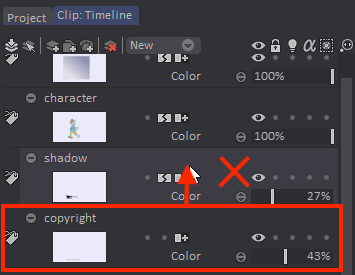

A frequent mistake is to move one layer on another when trying to flip them:

Flip merging mistake

Doing so will be interpreted by TVPaint as a merge of those two layers. Should you trigger the merge action, simply click on Cancel in the Merge pop up window to go back to your Layer Stack's previous state.

Merge options pop up window

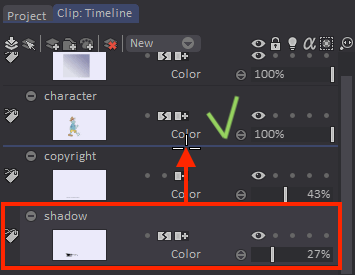

To avoid this, make sure you see the thin blue line between two layers before releasing your click if you wish to flip layers:

Flip blue line before release
